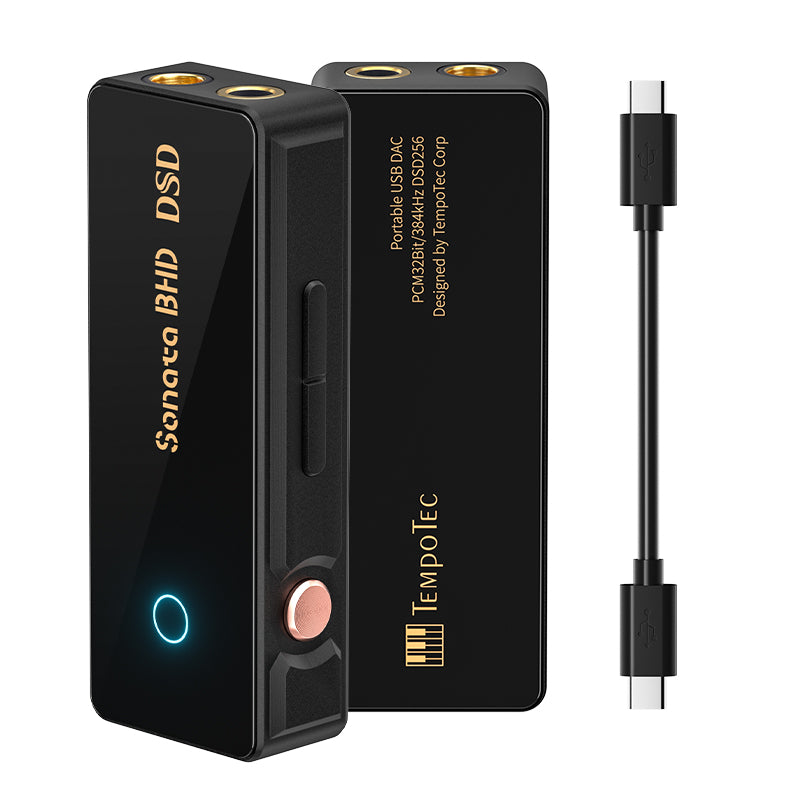

TempoTec Sonata BHD Portable USB-C DAC & Headphone Amplifier

TempoTec Sonata BHD Portable USB-C DAC & Headphone Amplifier

Price : 5499.00 TK 6200.00 TK

Model :
  • BHD
Category: Dac Brand: TempoTec Share:
Add to Cart Add to Cart


Who Is It For?

The TempoTec Sonata BHD is ideal for:

  • Audiophiles seeking a portable USB DAC
  • IEM enthusiasts
  • Users with balanced 4.4mm cables
  • Android, Windows, and macOS users
  • Hi-Res music listeners
  • Users upgrading from a standard USB-C audio adapter

Key Features

  • Dual Cirrus Logic CS43131 DAC chips
  • Independent left/right channel architecture
  • USB asynchronous transmission
  • PCM up to 32-bit / 384kHz
  • Native DSD256 decoding
  • 3.5mm single-ended output
  • 4.4mm balanced output
  • Three selectable gain levels
  • 16-step hardware volume control
  • RGB status indicator
  • Plug-and-play operation

Sound Characteristics

The Sonata BHD is designed to deliver a neutral and transparent presentation with excellent detail retrieval.

Bass

Clean, controlled, and well extended without excessive emphasis.

Midrange

Natural vocal presentation with clear instrument separation.

Treble

Smooth and detailed with good extension for high-resolution recordings.

Overall Performance

The dual-DAC architecture helps provide improved channel separation and a lower noise floor compared with typical integrated smartphone audio solutions. Actual sound quality will also depend on the connected headphones or IEMs.

Build Quality

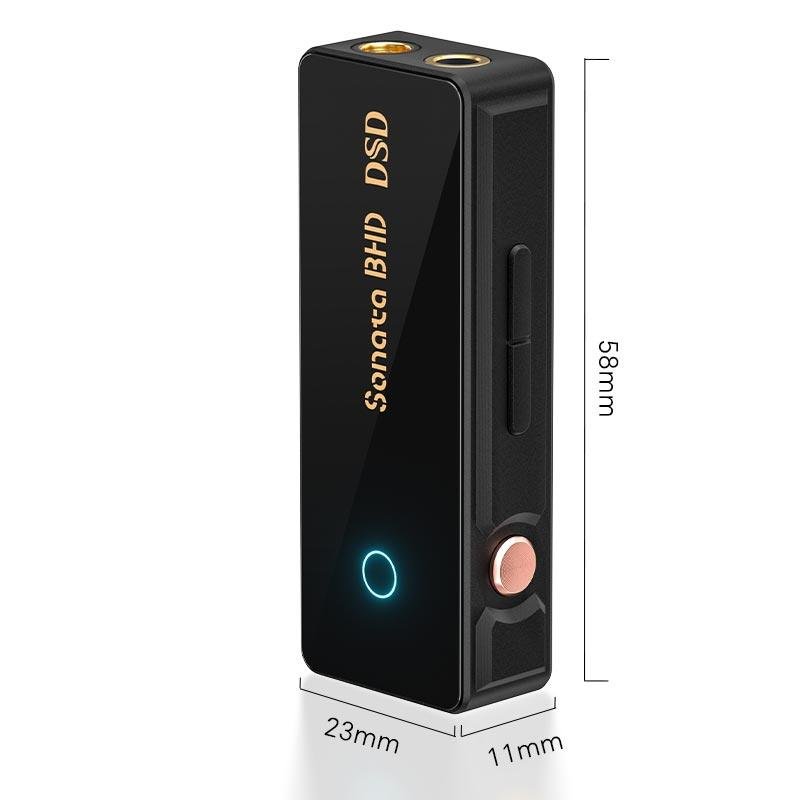

The Sonata BHD features a compact body measuring 58 × 23 × 11 mm and weighs approximately 18g, making it suitable for portable everyday use. Hardware buttons allow convenient adjustment of volume and gain directly from the device.

Compatibility

Compatible with:

  • Android smartphones
  • Windows PCs
  • macOS
  • USB-C tablets
  • USB-C Digital Audio Players (DAPs)
  • iPhone 15 series (USB-C)
  • Older Lightning iPhones using a compatible USB-C to Lightning cable

Windows 10 (version 1703 and later), macOS, and Android support plug-and-play operation. TempoTec also provides an optional USB audio driver with ASIO support for Windows.

Product Type
Portable USB DAC & Headphone Amplifier

DAC Configuration
Dual Cirrus Logic CS43131

USB Interface
USB Type-C (Asynchronous)

Supported Audio Formats

  • PCM: Up to 32-bit / 384kHz
  • Native DSD256

Outputs

  • 3.5mm Single-Ended
  • 4.4mm Balanced

Gain Levels

  • Low
  • Mid
  • High

Volume Control

  • 16-Step Hardware Control

Signal-to-Noise Ratio (SNR)

  • Up to 131dB

THD+N

  • 0.00012% (@32Ω, 1kHz)

Output Voltage

  • 4Vrms (4.4mm)
  • 2Vrms (3.5mm)

Dimensions

  • 58 × 23 × 11 mm

Weight

  • Approximately 18g

Note: TempoTec has published different output power figures for different Sonata BHD revisions and regional product pages. For this reason, the exact output power specification is intentionally omitted here to avoid presenting potentially incorrect information.

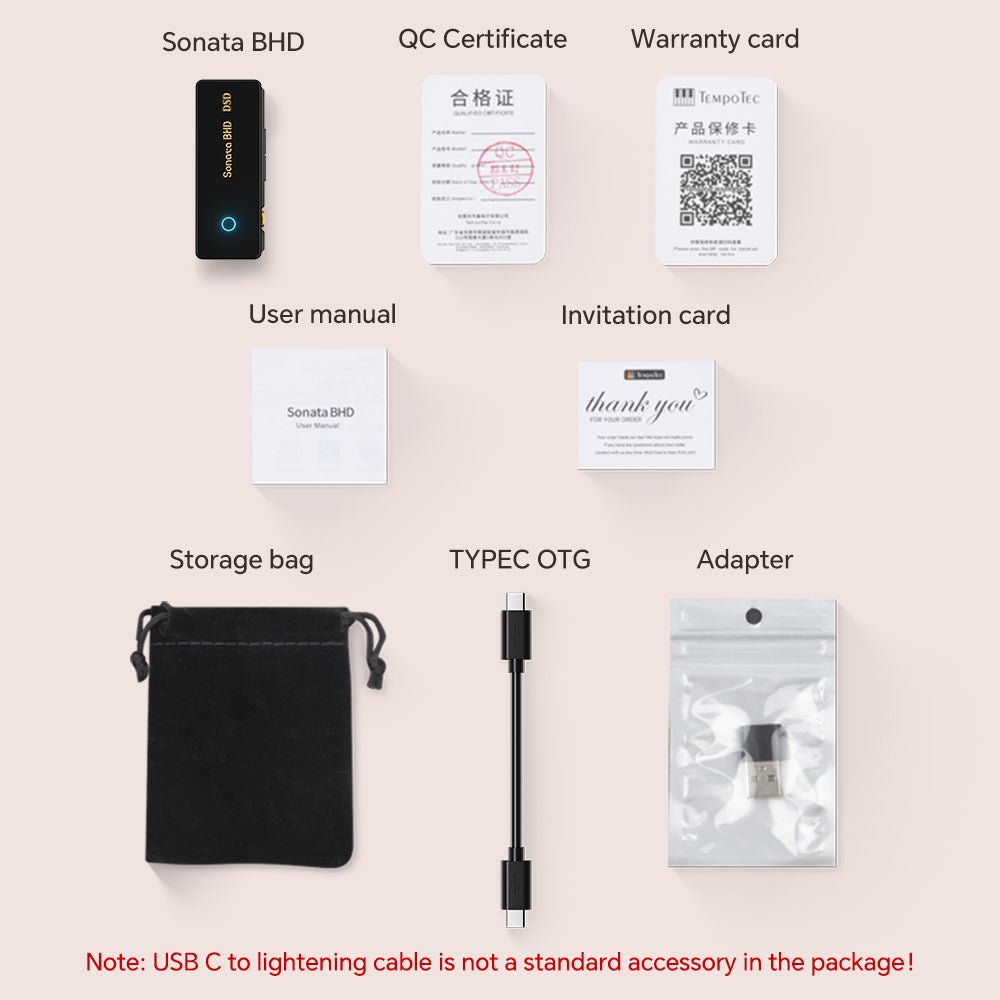

What's in the Box

  • TempoTec Sonata BHD
  • USB Type-C OTG adapter
  • Storage pouch
  • User manual
  • Warranty card
  • QC certificate

Accessory contents may vary depending on the production batch.

TempoTec Sonata BHD vs Standard USB-C Audio Adapter

Standard USB-C AdapterTempoTec Sonata BHD
Basic DACDual CS43131 DACs
Single headphone output3.5mm + 4.4mm outputs
Limited Hi-Res supportPCM 32/384 & Native DSD256
Fixed gainThree selectable gain levels
Software volume onlyHardware volume controls

Frequently Asked Questions

Does the Sonata BHD support balanced audio?

Yes. It includes both a 4.4mm balanced output and a 3.5mm single-ended output.

Does it support Hi-Res Audio?

Yes. It supports PCM up to 32-bit/384kHz and Native DSD256 playback.

Does it work with Android and Windows?

Yes. It supports Android, Windows, macOS, tablets, and compatible USB-C devices. Windows users can also install TempoTec's optional ASIO driver if needed.

Can I use sensitive IEMs with it?

Yes. The Sonata BHD includes selectable gain levels, allowing it to work with a wide range of IEMs and headphones.

Does it require external power?

No. The Sonata BHD is powered directly through the connected USB device.

Why Buy from ZenphonicBD?

When you shop at ZenphonicBD, you receive:

  • 100% genuine audio products
  • Official warranty (where applicable)
  • Trusted customer support in Bangladesh
  • Fast nationwide delivery
  • Secure online shopping
  • Reliable after-sales service

Whether you're upgrading from a basic USB-C adapter or building a portable Hi-Fi setup, the TempoTec Sonata BHD offers high-resolution audio support, versatile connectivity, and a compact design for everyday listening.
